📄 This is the official repository for the ICCV 2025 paper
DICE: Staleness-Centric Optimizations for Parallel Diffusion MoE Inference.

DICE is a framework for scalable and efficient inference of MoE-based diffusion models, designed to maximizing image quality and hardware utilization. It supports multiple parallelism strategies, including:

• Data Parallelism
• Expert Parallelism
• Displaced Expert Parallelism (communication-computation overlap, 2-step staleness)
• Interweaved Parallelism (1-step staleness, our core contribution)
• Sequence(Patch) Parallelism
• Displaced Sequence Parallelism (DistriFusion)

This work would not have been possible without the DiT-MoE codebase, which served as a critical foundation for our development. We are deeply grateful to its authors for open-sourcing their implementation. Our repository also adapts displaced sequence parallelism components from xDiT and DistriFusion, and we sincerely thank the authors of these projects for their valuable contributions to the community.

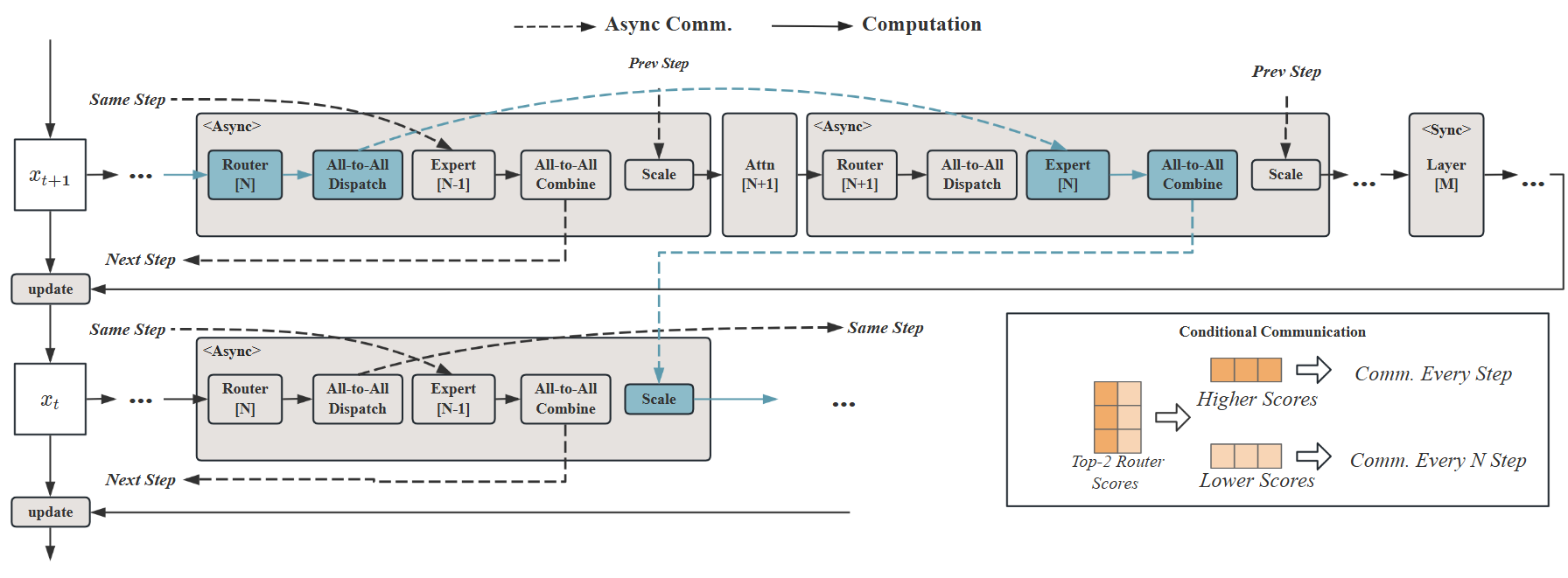

• Interweaved Parallelism: Halves the reduced staleness compared to displaced expert parallelism.
• Selective Synchronization: Ensures critical layers receive fresh activations while allowing asynchronous execution elsewhere.
• Conditional Communication: Dynamically reduces communication volume by prioritizing important tokens.

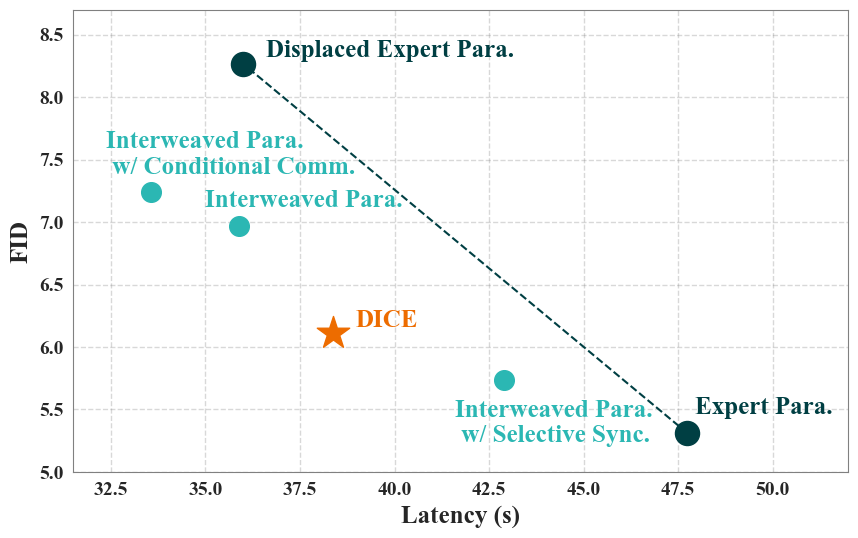

Interweaved Parallelism achieves a "free lunch" improvement over Displaced Expert Parallelism—it reduces staleness (1-step vs. 2-step) and memory usage while preserving image quality. For further acceleration, Selective Synchronization and Conditional Communication introduce tunable quality-efficiency tradeoffs

Set up your environment following the DiT-MoE. DICE requires the same dependencies.

This is an overview of the various parallelism techniques implemented in the project. For detailed explanations, please refer to the comments in the corresponding files.

/expertpara # Expert Parallelism
├── diep.py # Core implementation for displaced & interweaved EP
├── ep_cache.py # Activation caching for async expert parallelism
├── ep_fwd.py # Vanilla synchronous expert parallelism
└── prof_analyse.py # Profiling

/seqpara # Sequence Parallelism
├── comm_manager.py # Async communication for displaced SP
├── sp_cache.py # Buffer management
├── sp_fwd.py # Synchronous sequence parallelism
└── df.py # DistriFusion adaptation

/tests # Unit tests

Run sample_ddp.py or run_ddp.sh for serving over various parallelism(DP/EP/SP).

Configuration:

--nproc_per_node <int> : world size (the number of GPU)

--per-proc-batch-size <int> : batch size per GPU

--model <String> : model name (currently supports DiT-XL/2 and DiT-G/2)

--num-experts <int> : The number of experts (8 for DiT-XL/2 and 16 for DiT-G/2)

--image-size <int> : The resolution.

--cfg-scale <float> : CFG(Classifier-free guidence)

--num-sampling-steps <int> :The total sampling steps (Suggested value 50 for rectified flow)

num-fid-samples <int> : The number of images generated.

--ckpt <path> : Path to model weights.

--vae-path <path> : Path to the vae model.

--tf32 : Enables TF32.

--ep : Enables expert parallelism.

--ep-async : Enables asynchronous expert parallelism (Only available for --ep)

--auto-gc : Enables automatic garbage collection for asynchronous expert parallelism (Only available for --ep-async)

--ep-score-use-latest : While using asynchronous expert parallelism, the latest router score while be used. (Only available for --ep-async)

--ep-async-warm-up <int> : Specifies the number of sync steps to run before asynchronous expert parallelism begins.

--ep-async-cool-down <int> : Specifies how many steps before the end of sampling asynchronous expert parallelism should stop.

--strided-sync <int> : Periodic sync.

--ep-async-pipeline : Enables interweaved parallelism.

--ep-async-noskip-step <int> : 2 for using conditional communication, set to 1 otherwise.

--ep-async-mode : Specifies the mode for partial asynchronous expert parallelism. Options are shallow, deep, interleaved, all

--ep-async-skip-strategy <string> : Conditional Communication. Specifies the strategy for skipping tokens during asynchronous expert parallelism. Options are rand, low, and high.

--sp : Enables sequence parallelism

--sp-async : Displaced sequence parallelism (Only available for --sp) (DistriFusion)

--sp-async-warm-up : Specifies the number of sync steps to run before asynchronous sequence parallelism begins

--single-img : Set global batch size to 1. Only available for --sp.

If you use this code for your research, please cite our paper.

@article{luo2024staleness,
  title={Staleness-Centric Optimizations for Parallel Diffusion MoE Inference},
  author={Luo, Jiajun and Luo, Lizhuo and Xu, Jianru and Song, Jiajun and Lu, Rongwei and Tang, Chen and Wang, Zhi},
  journal={arXiv preprint arXiv:2411.16786},
  year={2024}
}
